PLD800 concrete batching machine
The PLD800 concrete batching machine can be combined with corresponding models to form modular concrete mixing plants of different forms and specifications. The 800 small batching machine is mostly used in HZS25 mixing plants or small construction sites.
Capacity: 800L
Productivity:48m³/hSHARE :IntroductionPLD800 concrete batching machine
The PLD800 concrete batching machine is a sand and gravel batching device that uses a loader or belt conveyor for loading. It can be used in conjunction with a mixer and can also be used in conjunction with equipment such as cement silos to form fully automatic and semi-automatic mixing stations. It is divided into one-way and two-way modes. It can automatically complete the batching process of 3-6 materials such as sand, stone, and cement (secondary concrete) according to the concrete ratio designed by the user. The use of an electronic weighing system can effectively ensure the accuracy of the mix ratio of cement, sand, and gravel, further improving the accuracy of weighing. This series of products adopts electronic weighing, microcomputer control, digital display, and wired remote control operation. It has the advantages of accurate weighing, high batching precision, fast speed, strong control function, and easy operation.
Technical Parameters
Item PLD600 PLD800 PLD1200 PLD1600 PLD2400 PLD3200 PLD4800 Weighing hopper volume 600L 800L 1200L 1600L 2400L 3200L 4800L Storage hopper volume 2×1.8m3 2×2.5m3 3x5m3 3x5m3 4x17m3 4x23m3 4x30m3 Productivity 36m3/h
(dry materials)48m3/h
(dry materials)56m3/h
(dry materials)75m3/h
(dry materials)150m3/h
(dry materials)200m3/h
(dry materials)300m3/h
(dry materials)Batching precision ±2% ±2% ±2% ±2% ±2% ±2% ±2% Max. weighing value 3000kg 3000kg 3000kg 3000kg 4500kg 4500kg 6000kg Number of material types 2-3 types 2-3 types 2-4 types 2-4 types 2-4 types 2-4 types 2-4 types Feed height 2300mm 2450mm 2950mm 2950mm 3700mm 4000mm 5000mm Feed belt speed 1.6m/s 1.6m/s 1.6m/s 1.6m/s 1.6m/s 1.6m/s 2m/s Power 3x3kw=9kw 3x3kw=9kw 4x3kw=12kw 4x3kw=12kw 11kw 11kw 15kw
Overall weight1250kg 2450kg 4500kg 4500kg 8500kg 10200kg 14000kg Overall dimension (L*W*H) 4.5×1.4×2.75 5.6×1.65×2.95 9.4×2.1×3.45 9.4×2.1×3.45 14.5×3.25×4 14.5×3.45×4.5 16.5×3.5×4.75
Working PrincipleWorking Principle

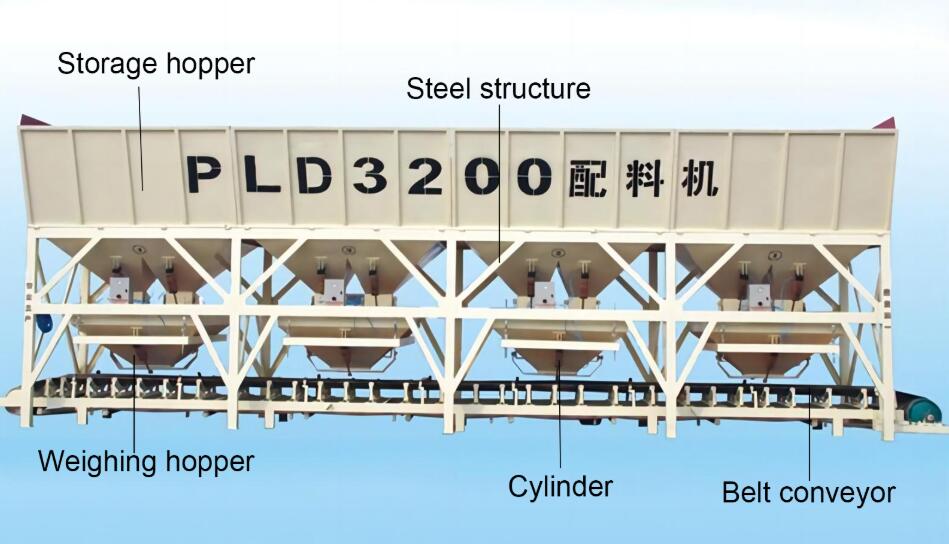

Pneumatic Weighing Batching Machine is composed of storage hopper, weighing hopper, level conveying belt, etc. Aggregates are discharged from storage hopper into weighing hopper by air cylinder and are discharged again to level conveying belt via discharge door controlled by air cylinder after weighing.FeaturesProduct Features
Features 1The storage silo has a large capacity, which reduces the number of times the loader needs to load the material. The storage silo is equipped with a screen to prevent large-sized aggregates from entering the mixing main unit, ensuring safe and reliable operation.
Features 2Electronic weighing, microcomputer control, digital display, remote control operation, with the advantages of accurate weighing, high batching precision, fast speed and strong control function.
Features 3Designed in accordance with GB10171 "Concrete Mixing Plant (Building)" standard, it is so easy to operate that only one button is required each time. The door unloading angle is optimized, and the double-leaf door ensures smooth unloading.
Features 4It can be combined with a mixer to form mixing plants of different forms (straight or L-shaped) and specifications. The cost is only 1/3 of the mixing plant of the same specification, and it is very convenient to move and install.dETAILProduct Detail Show
