Vibrating Screen is an essential screening equipment used to separate materials by particle size. Utilizing vibrating motors or exciter systems, it ensures efficient screening performance for various dry and wet materials. Commonly applied in mining, aggregates, metallurgy, coal, and building materials industries, it offers high screening efficiency, strong durability, and customizable mesh options.
icon
Feeding Size:≤900mm
icon
Capacity:180-1000t/h
SHARE :
Introduction
Main details
Parameters
Working Principle
Features
Detail
Introduction

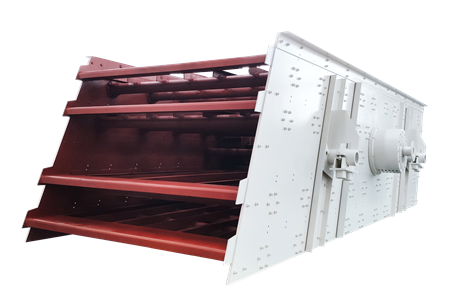

Vibrating screen

Vibrating Screen is a highly efficient material classification machine designed to separate bulk materials into different particle size fractions. It operates through linear or circular vibration generated by vibration motors or exciter mechanisms, driving the screen deck to vibrate and stratify materials. The vibration accelerates material movement across the screen surface, ensuring fast and accurate separation. Available in single or multi-deck configurations, Vibrating Screen is suitable for handling ores, coal, crushed stones, sand, chemicals, and other granular or powdered materials. Screen decks are customizable with various mesh types including woven wire, polyurethane, and perforated plates, making the machine adaptable to different material properties and screening goals. This equipment features compact structure, easy maintenance, low noise, and high throughput. With its ability to efficiently classify, dewater, or deslime materials, Vibrating Screen plays a critical role in modern material processing lines across various industries.

Technical Parameters

ModelSieve mesh layer numberSieve mesh surface area
(㎡)
Vibration amplitude
(mm)
Vibration frequency
(r/min)
Motor power
(kw)
Capacity
(tph)
2YKZ20602126-998030180-280
3YKZ20603126-998030180-280
4YKZ20604126-998045240-300
3YKZ2270315.46-998045240-320
4YKZ2270415.46-998045200-260
1YKZ2460114.46-997022300-350
2YKZ2460214.46-998030240-300
3YKZ2460314.46-998030240-300
4YKZ2460414.46-998045240-300
2YKZ2670218.26-998037280-400
3YKZ2670318.26-998045280-400
4YKZ2670418.26-999075280-400
2YKZ30802216-998037450-550
3YKZ30803216-998055400-500
4YKZ30804216-999075450-550
2ZXS3280225.66-997045*2600-800
3ZXS3280325.66-997055*2600-800
2ZXS3680228.86-997055*2600-800
3ZXS3680328.86-997075*2600-800
2ZXS104002406-998075*2800-1000
3ZXS104003406-996090*2800-1000
Vibrating screen

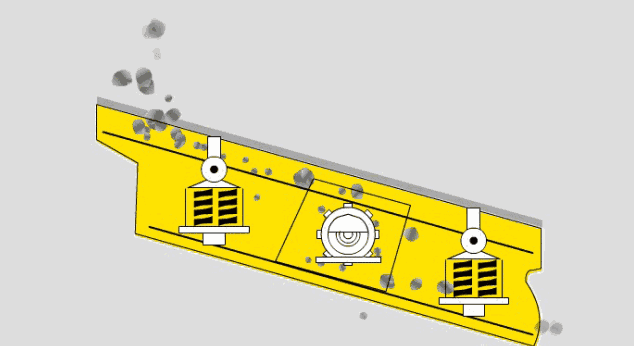

Working Principle

Working Principle


With the exciting force generated by the vibration motor (eccentric block or eccentric shaft), the screen body is made to vibrate periodically back and forth along the direction of the exciting force. The processed raw materials jump in a circle on the screen. The processed raw materials with different properties are graded and sorted onto the required screen surface through different screen holes. After being collected, they are transported to the designated area to meet the purpose of grading or de-mediation. The vibration amplitude can be adjusted by adjusting the weight of the eccentric block.
Features


Product Features


icon
Features 1
The excitation force is adjusted by adjusting the number of counterweights, and the exciters are linked by universal joint couplings
icon
Features 2
The support adopts rubber composite spring for vibration reduction, stable operation and low noise
icon
Features 3
The side plate and the beam are connected by high-strength ring groove rivets, there is no stress relay, and distortion and deformation are effectively avoided
icon
Features 4
It is convenient to replace the screen, and the screen can be customized
