Vibrating Feeder
Vibrating Feeder is a feeding equipment designed to continuously and uniformly transport bulk materials to crushers, screens, or conveyors. Using vibration to move materials along a trough, it ensures smooth flow without clogging or surges. Widely used in mining, metallurgy, coal, construction, and chemical industries, Vibrating Feeder features simple structure, stable operation, and adjustable feeding capacity.
Capacity:80-3000t/h
Feeding Size:200-1200mmSHARE :IntroductionVibrating Feeder

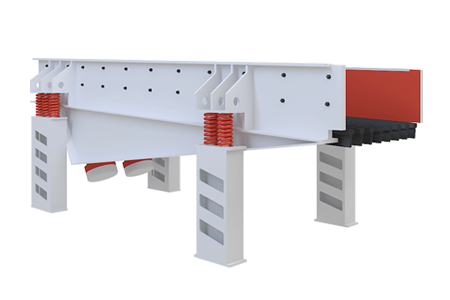

Vibrating Feeder is a vital piece of equipment in material handling systems, engineered to deliver consistent and controlled flow of bulk materials. It consists of a vibrating trough supported by springs and driven by a pair of counter-rotating vibrating motors or an exciter. The vibration causes the material to move forward in a controlled manner, preventing blockages and ensuring steady feeding. This machine is suitable for feeding materials to jaw crushers, impact crushers, or screening equipment. It handles various types of bulk solids, including ore, rock, coal, aggregates, and chemical granules. The feeding rate is adjustable via motor speed control, allowing for precise process control. Vibrating Feeder offers advantages such as strong adaptability to harsh environments, low energy consumption, minimal maintenance, and extended service life. It plays a crucial role in automated material handling and is widely used in mineral processing, quarrying, building materials, and recycling applications.
Technical Parameters
model Length of feeding trough
（mm）Width of feeding trough
（mm）Maximum feed particle size
（mm）processing power
(t/h)power
(Kw)Overall dimensions
(mm)DZG0812 1200 800 300 50-100 0.75*2 1490*1107*1040 DZG0816 1600 800 300 160-300 1.1*2 1900*1074*1077 DZG0918 1800 900 300 160-300 2.2*2 2200*1256*1390 DZG2407 2400 700 450 30-80 1.5*2 2486*1280*875 DZG1015 1500 1000 300 160-380 1.5*2 1770*1356*1280 DZG1020 2000 1000 300 160-400 2.2*2 2400*1356*1444 DZG1120 2000 1100 300 160-700 3*2 2170*1780*1060 DZG1820 2000 1800 400 160-740 3*2 2500*2080*1800 DZG3075 3000 750 420 50-100 3 3090*1787*1014 ZZG3895(10°) 3800 950 520 96-160 11 3866*1650*1525 ZZG4211(10°) 4200 1100 580 120-240 15 4273*1868*1733 ZZG4911(10°) 4900 1100 700 120-240 15 4963*1868*1750 ZZG5012(10°) 5000 1200 800 220-350 22 5060*1968*1700 ZZG6015(13°) 6000 1500 1000 700-1000 45 5994*2117*2268
Working PrincipleWorking Principle
A vibration motor is used to provide vibration force, and the feeding trough performs linear periodic reciprocating vibration. When the vertical component of the trough vibrates, the acceleration is greater than the acceleration of gravity, and the material jumps upward and forward along a parabolic path. Due to the continuous excitation of the vibration motor, the trough vibrates continuously, and the material in the trough jumps forward continuously, thereby achieving the purpose of feeding.FeaturesProduct Features
Features 1Customizable: Available in soil-free, semi-soil-free, full-soil-free, dual-purpose, transfer-suspended, under-silo, and outside-silo configurations. The modular frame and crossbeam design allows for easy disassembly, transportation, and assembly, and is fully shot-blasted. A full paint system ensures the equipment looks like new.
Features 2The side panels are made of alloy wear-resistant steel plates, which are durable and will not crack. The exciting force is adjustable, which makes it easy to control the feeding amount and ensures stable and reliable operation.
Features 3The vibration motor is the excitation source, with low noise, low power consumption, good adjustment performance, no punching phenomenon, stable performance, large exciting force, and the speed can be adjusted by the frequency converter to achieve fast or slow feeding.

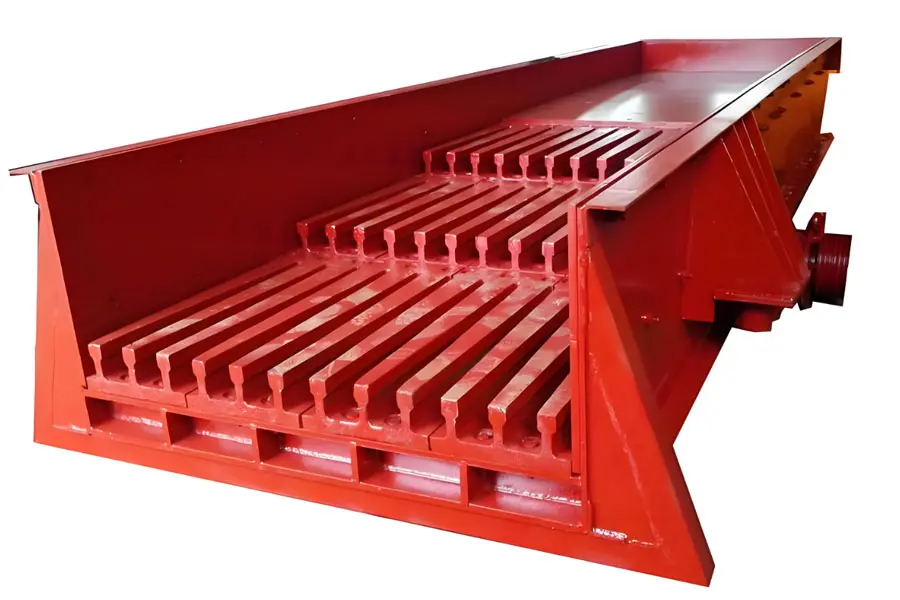

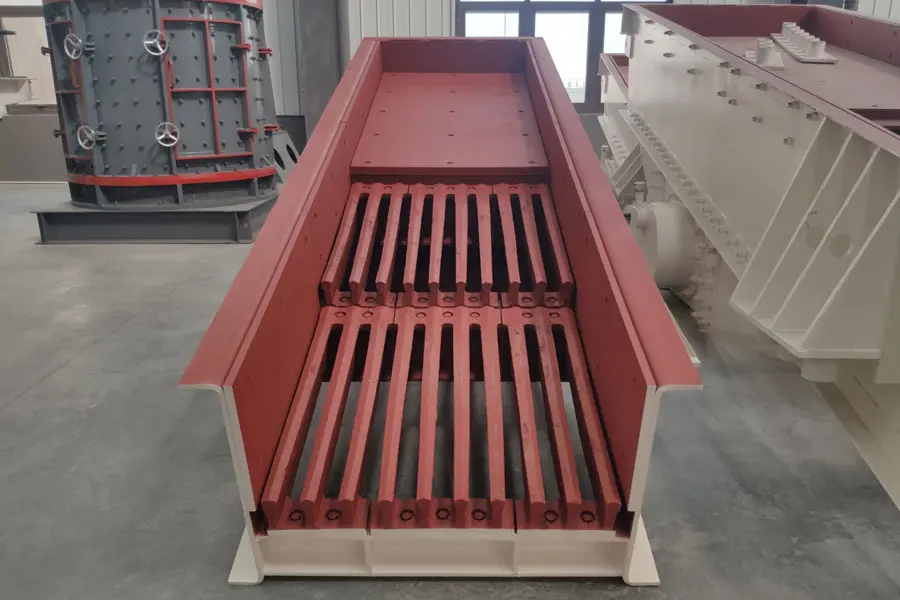

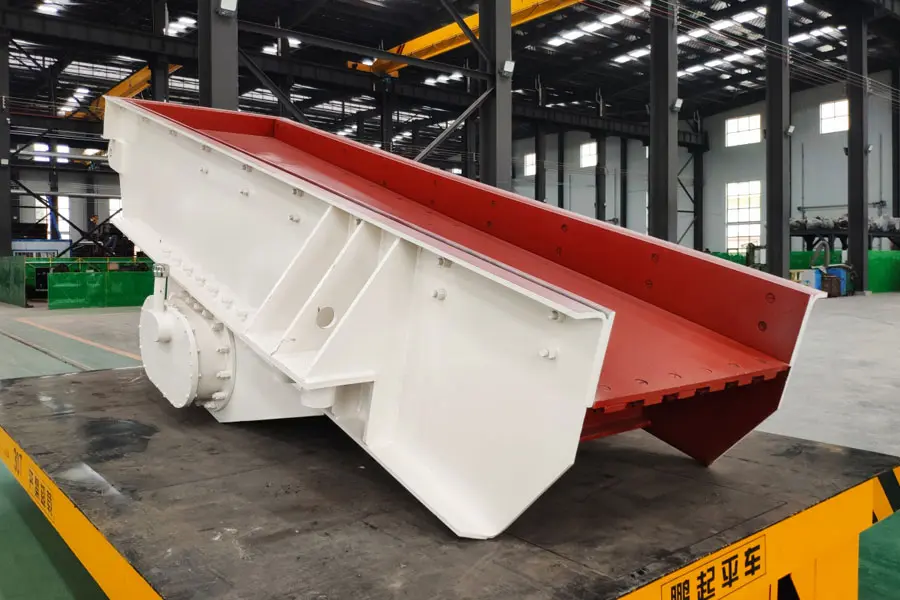

Features 4The inclined design and fan-shaped grille bars can be produced on rainy days, and normal production can also be carried out on rainy days.dETAILProduct Detail Show
