Main details
Hybrid system

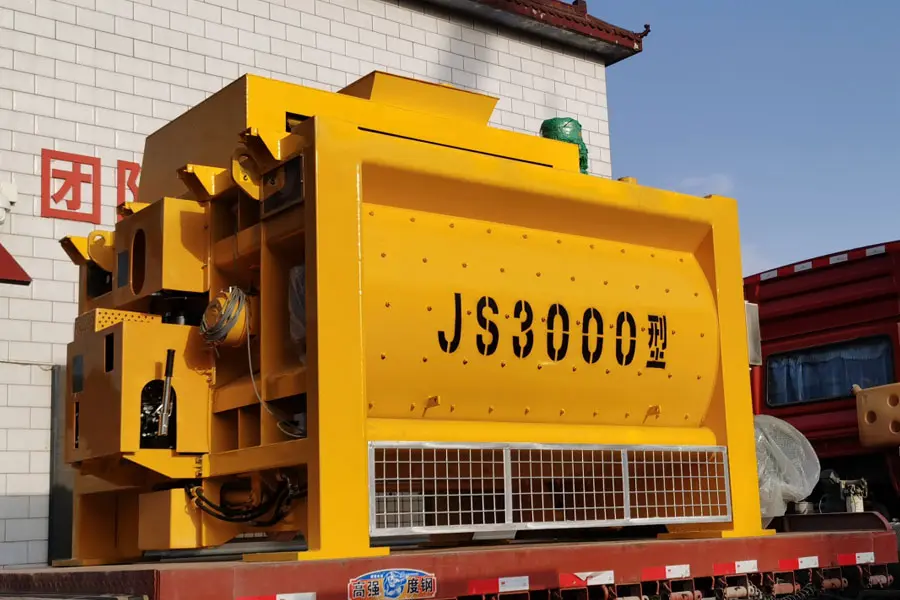

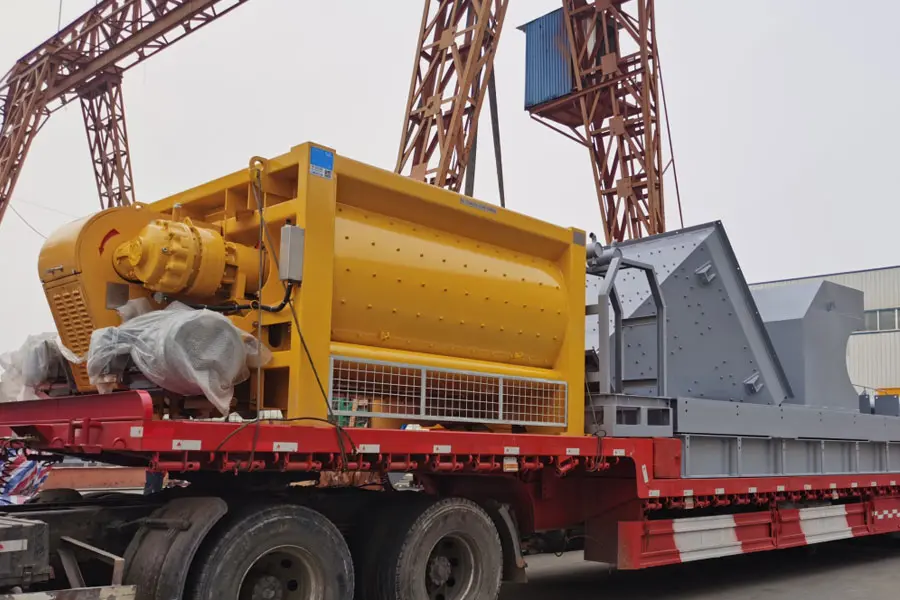

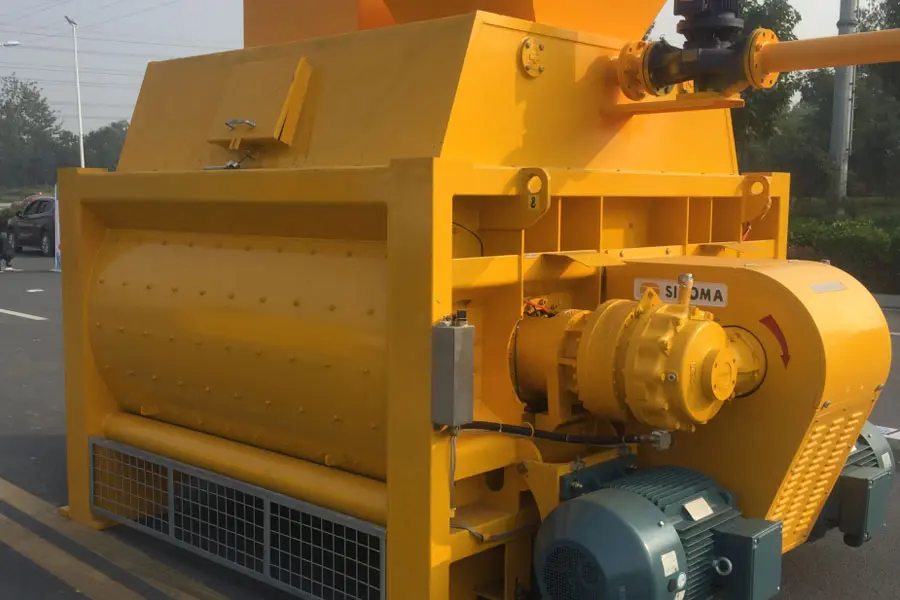

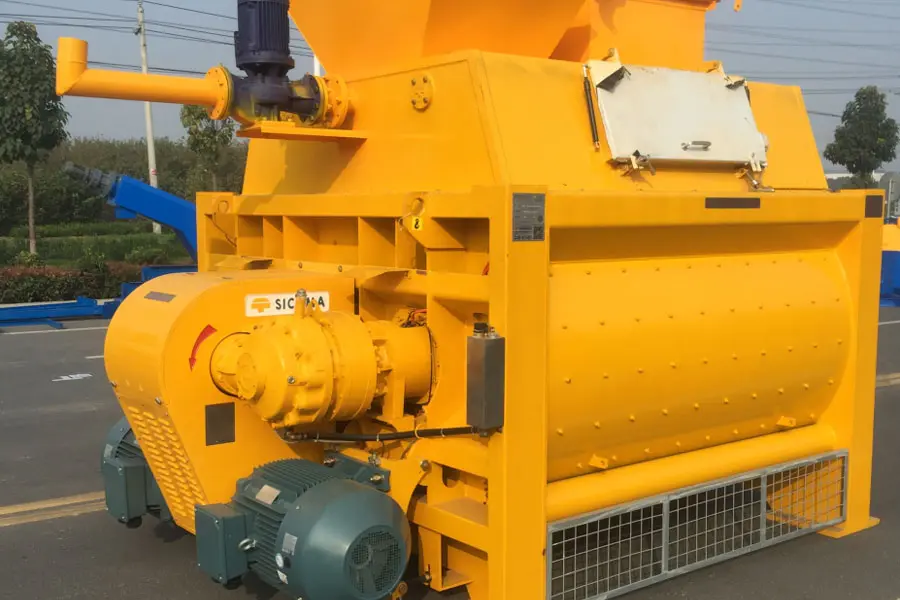

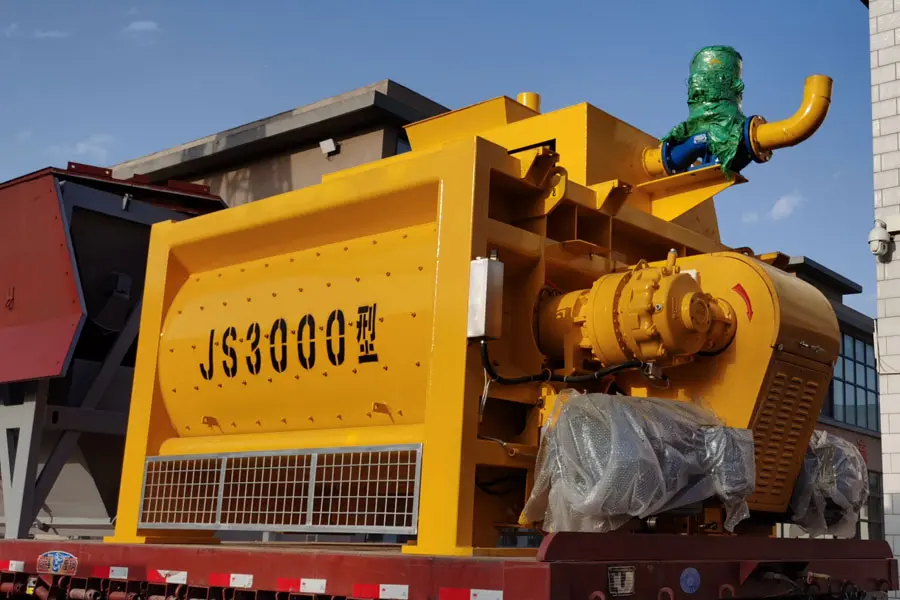

The mixing system consists of a motor, pulley, reducer, open gears, mixing drum, and oil supply. The high-temperature-resistant all-copper motor ensures long-term operation without burnout. Equipped with a high-performance cycloidal pinwheel reducer, the entire machine operates smoothly and quietly. The mixing shaft, mixing arm, mixing blades, and liner are all made of thickened, wear-resistant high-manganese-chromium alloy, ensuring uniform and stable mixing. Multiple seals are used on the shaft ends for high production efficiency, long service life, and no leakage.
Loading System
The upper portion of the loading rack is foldable, allowing for easy transport. A limit switch prevents the hopper from crashing into the top of the hopper, providing both position control and safety. The wire rope pulley is precision-machined for safety and reliability. The use of line-contact wire rope reduces intermittent contact stress, minimizes wear, provides high load capacity, and prolongs service life.
Unloading System
The unloading system consists of a discharge gate, pneumatic or hydraulic cylinder, air pump, reversing valve, and air distribution valve. Unloading options include hydraulic, pneumatic, and manual. The discharge door is installed at the bottom of the mixer and pneumatically discharges the material via a pneumatic or hydraulic cylinder. Manual operation is achieved using a manual lever. This allows for emergency discharge in the event of a power outage or a malfunction of the pneumatic or hydraulic cylinder.
Water Supply System
The water supply system consists of a water pump, a throttle valve, a cleaning device, and a water sprayer. The 360-degree sprayer delivers high water flow and wide coverage, improving spray efficiency, significantly reducing water consumption, and lowering production costs. The throttle valve adjusts the water flow rate and limits the speed of fluid passing through the valve, thereby controlling flow and pressure.
Electrical System
The electrical control system is equipped with air switches, fuses, and thermal relays, providing short-circuit and overload protection. All control buttons, air switch handles, and indicator lights are evenly distributed on the distribution box door and equipped with a lock. A small protective door is located outside the buttons. The electrical components within the distribution box are mounted on an insulating plate, ensuring safety, reliability, and easy operation and maintenance.
