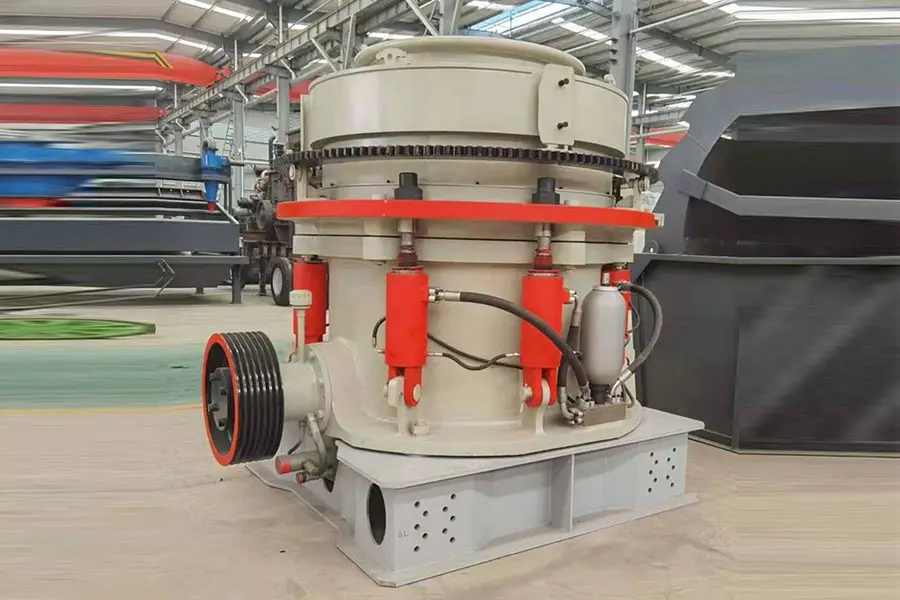

Cone Crusher

Cone Crusher is a high-efficiency and energy-saving crushing machine that utilizes a multi-cylinder hydraulic system for precise adjustment, ensuring stable operation of the crushing chamber. It is suitable for medium to hard ores in secondary and tertiary crushing applications, offering high crushing efficiency and large output. The compact structure and easy maintenance make it widely used in mining, construction waste processing, metallurgy, and other industries. This crusher is an ideal choice for modern ore crushing needs.

Feeding Size:≤500mm

Capacity:90-1000t/h

Chat Now

Introduction

Main details

Parameters

Working Principle

Features

Detail

Introduction

Cone Crusher

Single cylinder hydraulic cone crushers are widely used in various sectors such as mining, smelting, building materials, highways, railways, water conservancy, and chemical industries. They can crush materials with medium to high strength, such as iron ore, limestone, granite, etc. This machine has the advantages of good crushing capacity, continuous and stable operation, neat particle shape, automatic hydraulic cleaning chamber, and high processing capacity, making it an ideal equipment for medium and fine crushing.

Technical Parameters

Model		DP-100	DP-160	DP-250	DP-300
motor(kw)		75-90	110-160	132-250	200-315
stroke(mm)		16、20、25	18、25、32、40	18、25、32、40	18、25、32、40
weight(t)		9.8	12.8	23.2	38.5
Max feed size（mm）	medium-sized	200
	Coarse type	250	250	280	380
	Extra thick		330	380	500

Working Principle

This crusher has a layered crushing characteristics. during the work, the motor drives the eccentric rotation through the transmission device, under the force of the eccentric axis sleeve, the moving cone is rotating and swinging,the dynamic cone's section of the cone becomes a crushing cavity, when the dynamic cone leaves the section, the material that has been crushed to the granular material where the granularity is required to fall under its own gravity, and it is discharged from the bottom of the cone.

Features

Product Features

Features 1

The fuselage has high strength, and the accessories are finished and durable; labyrinth combination, grease seal, good dustproof effect.

Features 2

Semi-automatic hydraulic adjustment of the discharge port, fast and convenient; special crushing chamber design, effectively improve production capacity.

Features 3

The replacement of the movable and fixed tooth plates does not require fillers, which is convenient and quick, and can be quickly put into production and operation; the fixed cone is mechanically locked by a swing bolt, which is easy to operate and has a low failure rate.

Features 4

The lubricating oil circulating cooling system is designed according to the actual situation of the customer, and the temperature control system and pressure control system are convenient for customers to master and operate.

Features 5

Over-iron protection, safe and reliable; automatic cavity cleaning, fast and time-saving; bevel gear transmission, firm and stable.

dETAIL

Product Detail Show
