150T horizontal cement silo
150T horizontal cement silo
150T horizontal cement silo
150T horizontal cement silo
150T horizontal cement silo
150T horizontal cement silo
150T horizontal cement silo
150T horizontal cement silo
150T horizontal cement silo

150T horizontal cement silo

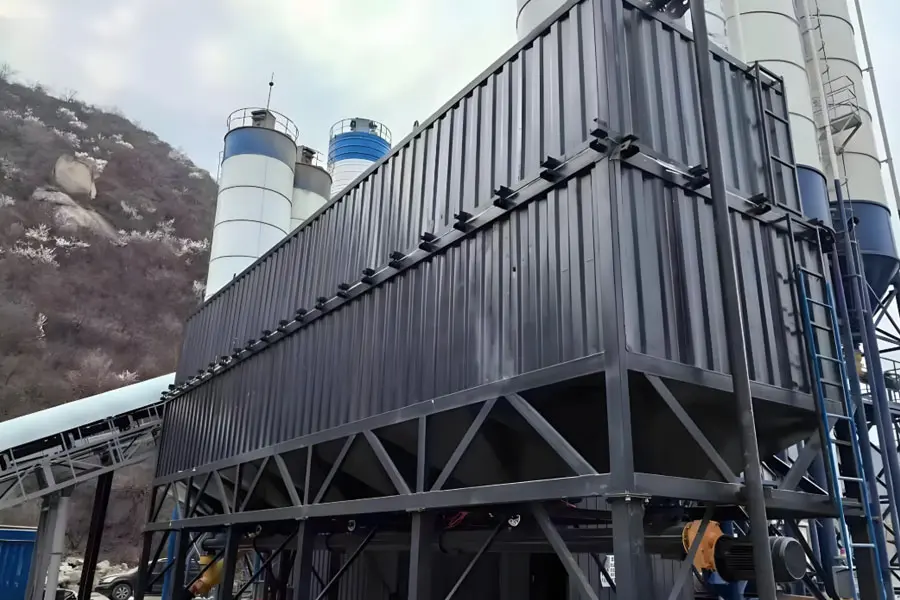

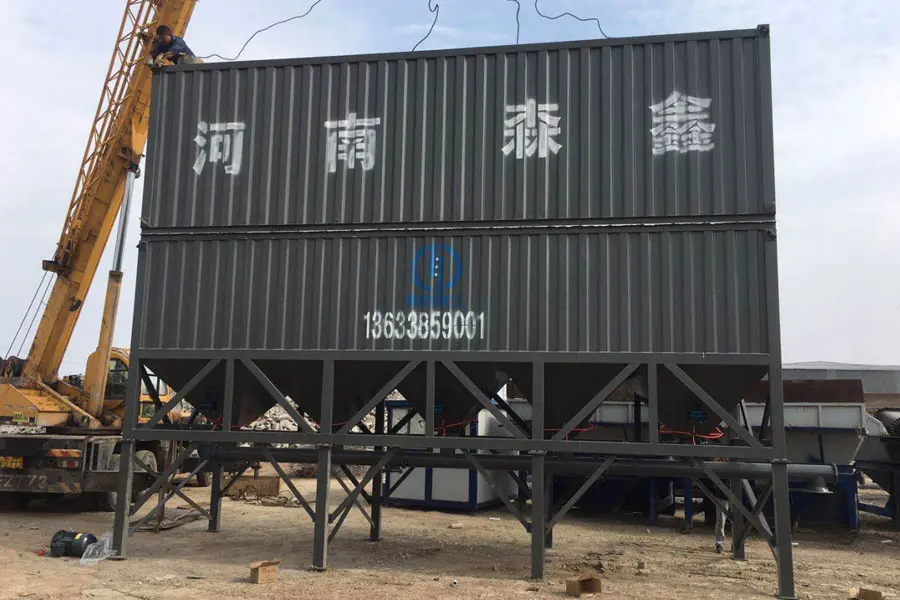

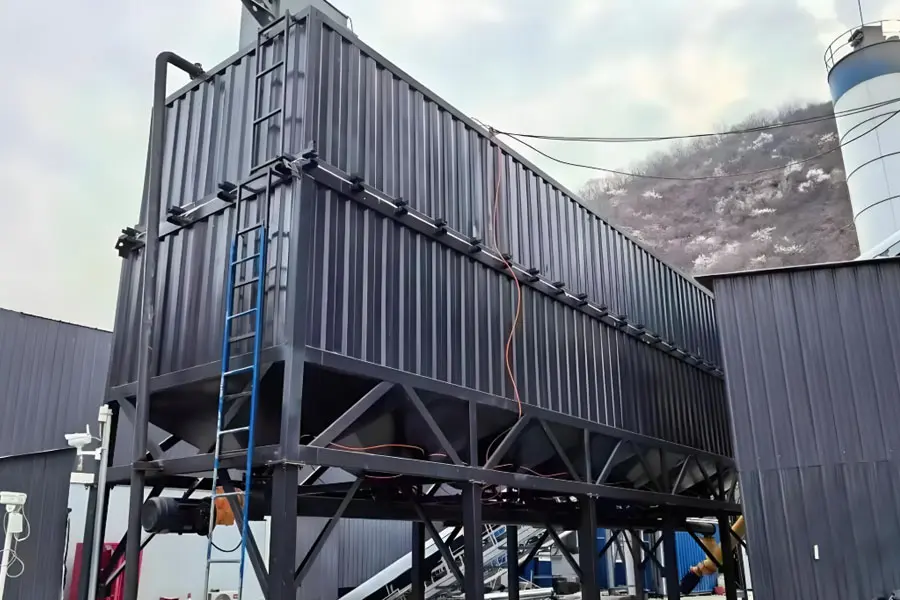

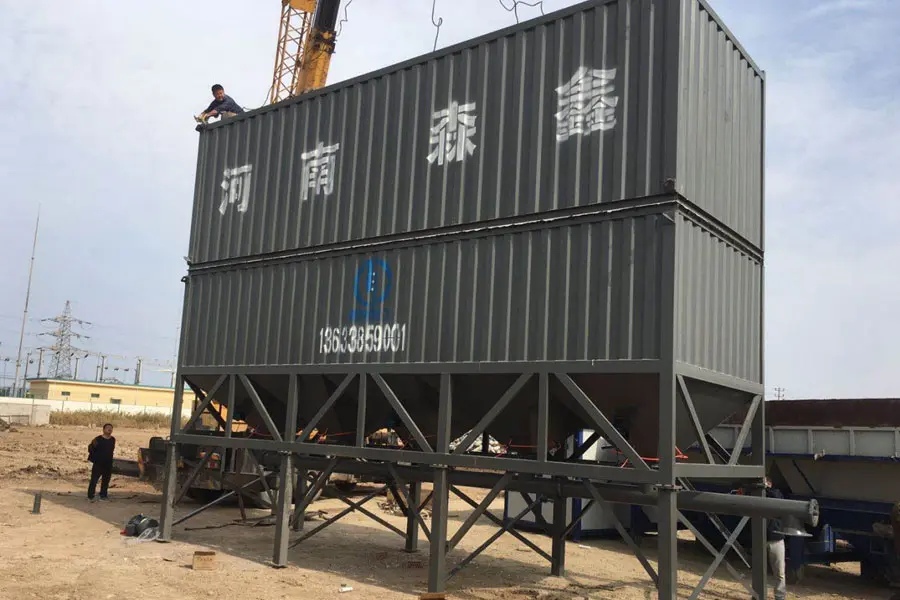

The horizontal cement silo is square in shape, supported by several legs at the bottom. The discharge cone is a square cone, and the silo is welded from a frame of corrugated board and profiles, resulting in a relatively low overall height. The horizontal cement silo is equipped with a cement discharge port and screw conveyor at the bottom for convenient unloading and transportation.
icon
Specifications: 150T
icon
Dust collector: Electric/Pulse
SHARE :
Introduction
Main details
Parameters
Working Principle
Features
Detail
Introduction

150T horizontal cement silo

A containerized cement silo, also known as a horizontal bulk cement tank, is a closed tank designed for storing bulk materials, suitable for cement, fly ash, and other bulk materials. It features a material level indicator that indicates the location and quantity of the material, and a rupture mechanism to remove the buildup of material caused by prolonged sedimentation. Horizontal cement silos are square in shape, supported by several legs at the bottom. The discharge cone is a square cone, and the silo is constructed from a welded frame of corrugated sheet metal and profiles, resulting in a relatively low overall height. A cement discharge port and screw conveyor at the bottom facilitate unloading and conveying. Compared to traditional vertical cement silos, horizontal cement silos have lower foundation requirements and can be placed directly on the ground, making them easily transportable by truck or flatbed without disassembly. Horizontal cement silos are commonly available in two-, four-, and six-hopper configurations, with common sizes ranging from 30 tons, 50 tons, 80 tons, and 100 tons. Customization is also possible upon request. Horizontal cement silos are widely used in various mobile concrete batching plant, foundation-free concrete batching plant and other temporary concrete mixing plants or stabilized soil mixing plants.

Technical Parameters

modelOverall dimensions
(length x width x height)
Screw conveyor configuration
JLSNC30T3.5x3x4.5(m)LSY219
JLSNC50T6x3x4.5(m)LSY219
JLSNC60T7x3x4.5(m)LSY219/273
JLSNC80T10x3x4.5(m)LSY219/273
JLSNC100T12x3x4.5(m)LSY219/273
JLSNC150T7x3x4.5(m)(Double layer)LSY325
JLSNC200T12x3x4.5(m)(Double layer)LSY325
150T horizontal cement silo
Working Principle

Working Principle


Horizontal cement silo is a kind of enclosed storage of bulk material warehouse, such as cement, dry fly ash, grain and other material. The regular model is 50t, 80t, 100t, 150t, 200t, 300t, it also can be customized as customer’s request.
Features


Product Features


icon
Features 1
No installation required, ready for immediate use. This horizontal cement silo is fully factory-manufactured, eliminating the need for on-site foundation installation. The overall height is significantly reduced, allowing for discreet production and reducing environmental inspections.
icon
Features 2
Reduced height. In today's challenging environmental situation, this reduced height allows for placement inside the production workshop, eliminating the issue of excessive height and visual distraction.
icon
Features 3
No external enclosure is required, saving costs. Environmental protection requirements require that exposed silo equipment be enclosed. Due to its low height, this equipment can be placed inside the workshop, eliminating the need for external enclosure, thus saving costs.
icon
Features 4
Cement is blown into the storage bin through the feed pipe by wind. As the pressure in the bin increases, the gas in the bin is filtered through the dust removal device and discharged from the air outlet, while the cement mixed in the gas is retained in the cement bin. It is easy to operate and environmentally friendly.
dETAIL

Product Detail Show

150T horizontal cement silo
150T horizontal cement silo
150T horizontal cement silo
150T horizontal cement silo
